The Unpacking Tech Systems workshop consisted of two intense weeks spent diving into the hidden logic of electronic objects. In the first week, we disassembled, cataloged, and examined the inner workings of a discarded device. In the second week, we reassembled the components into a new hybrid system—repurposing the original parts with a completely new intention.
For our group, we chose the vintage SUNSTECH RD-1010 radio. The radio still functioned perfectly when we found it, and we wanted to give it a new life by transforming its internal logic into an interactive e
Where We Started
We began by carefully opening the radio, unscrewing the back panel and working layer by layer through the internal structure. Our goal was to remove the boards without damaging any components, since we planned to reuse the control logic in our final prototype. The process was exciting; each layer revealed new parts, materials, and unexpected learning curves for our team.
Key steps in the teardown:
- Unscrewing and removing the back casing.
- Disconnecting internal boards safely to preserve functionality.
- Documenting each component and its behavior.
- Identifying reusable sensors, conductors, amplifiers, and mechanical parts.

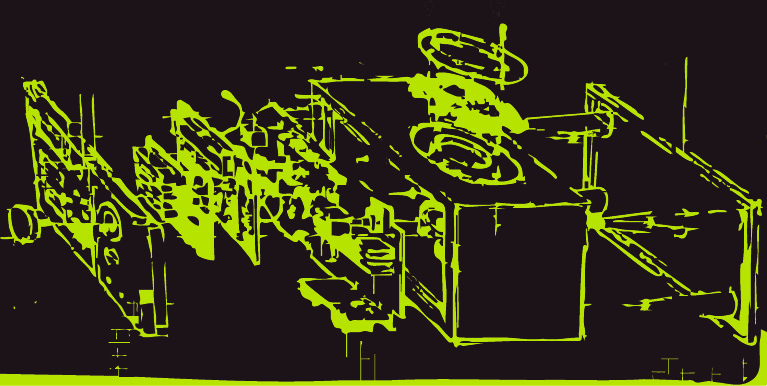

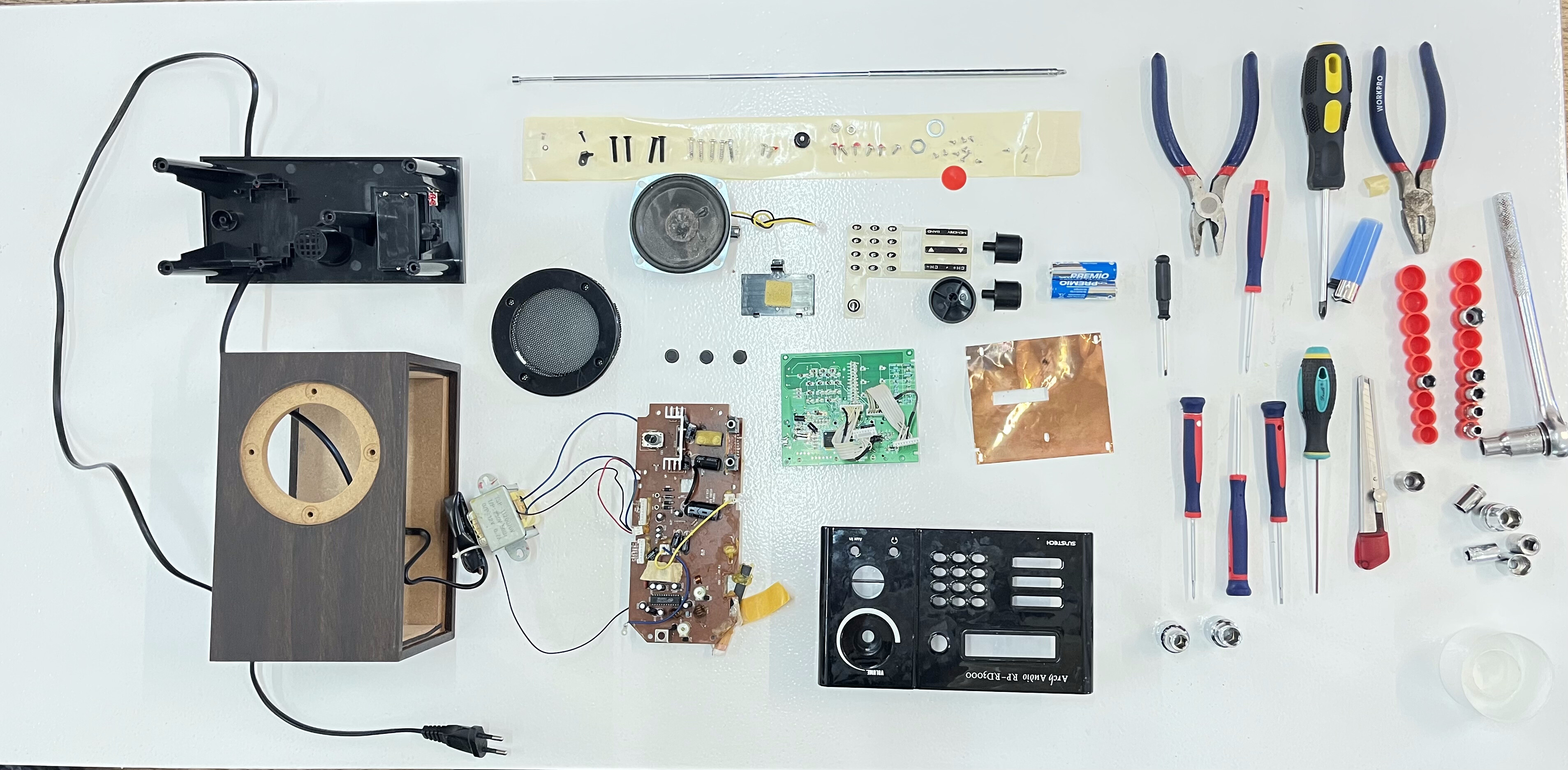

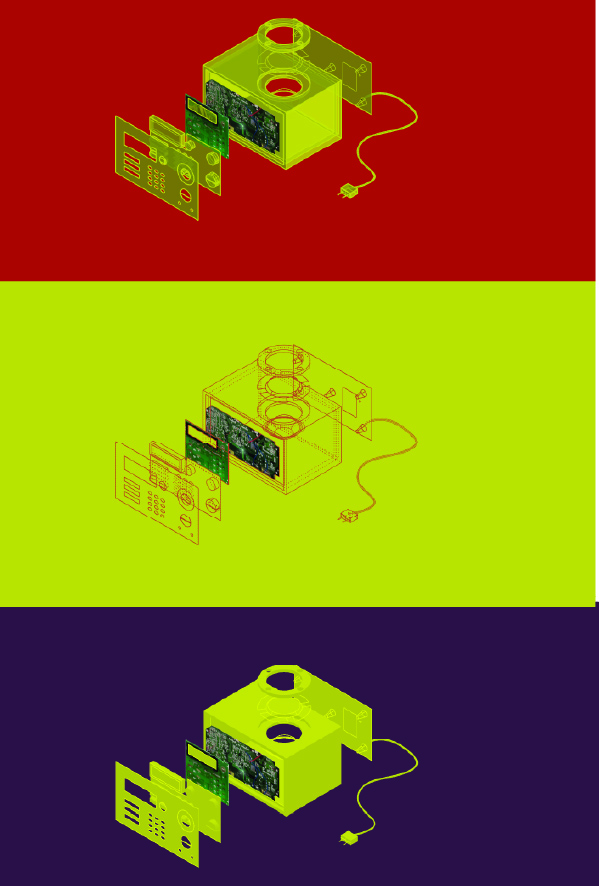

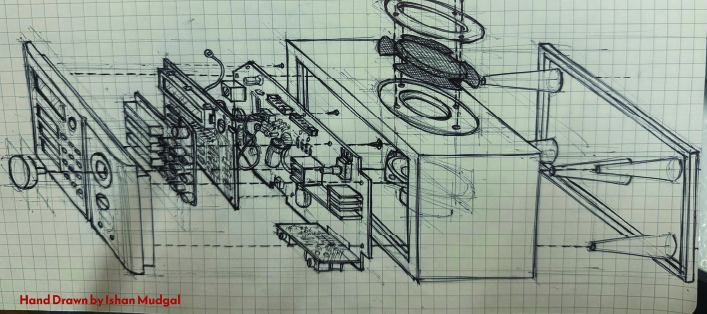

Below is the forensic report we created, documenting every part and its specific role within the system.

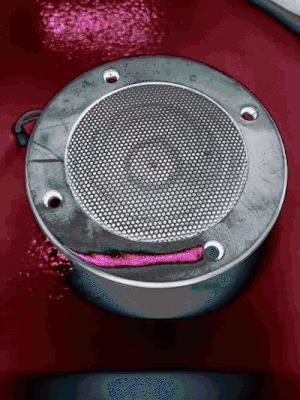

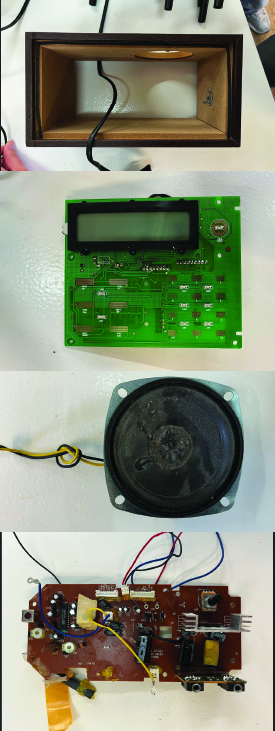

We transformed the radio’s original capacitive touch board into a digital controller.
We repurposed the capacitive touch sensor panel from the vintage radio and connected it to an Arduino so we could manipulate the touch-based signals.

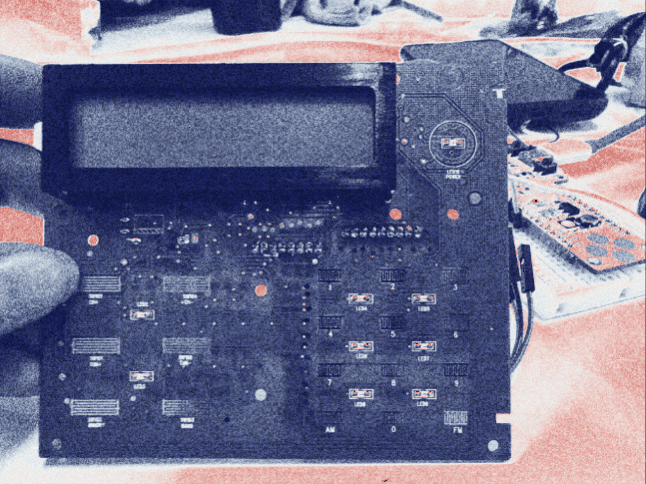

The original board had six sensor pads on the left that were designed to change radio settings when touched, and nine sensors on the right that controlled the clock functions.
To interface this with our computer, we soldered wires from selected touch pads on the radio’s PCB to the numbered input pins on the Arduino. Each wire acted as its own input, and each channel was programmed to output a different beat or frequency whenever it was touched—turning the pads into touch-activated musical controls.
Our goal for next week is to manipulate or reinterpret the music originally played by the radio by using its touch sensor panel as a modern interactive interface. With the Arduino receiving touch data, we sent these signals over USB into our computer and used them in TouchDesigner to drive real-time visual effects.
Week 2¶
Click the bottom right corner to access my flipbook/Zne.
Zine
THE JOY KILLER
Made with the SUNSTECH RPRD3000
Introduction
We transformed the vintage SUNSTECH radio into a reimagined way of playing with the childrens toy, "Jack in the Box". The intention behind the design was to expose the hdden truth behnd the magic of Christmas.
Video link: click here for link

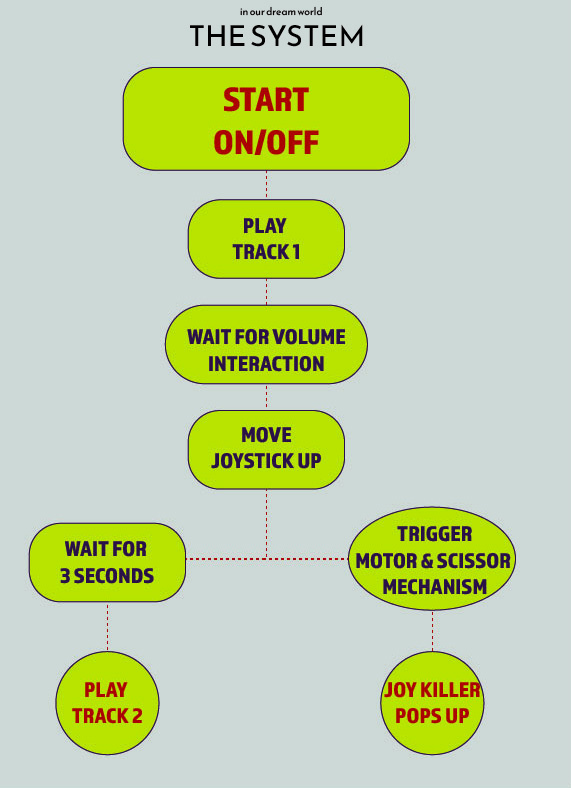

How did we make it?
Through lots of trial and error. Many Prototypes. Lots of Hope. Countless failures. Heres the procress.

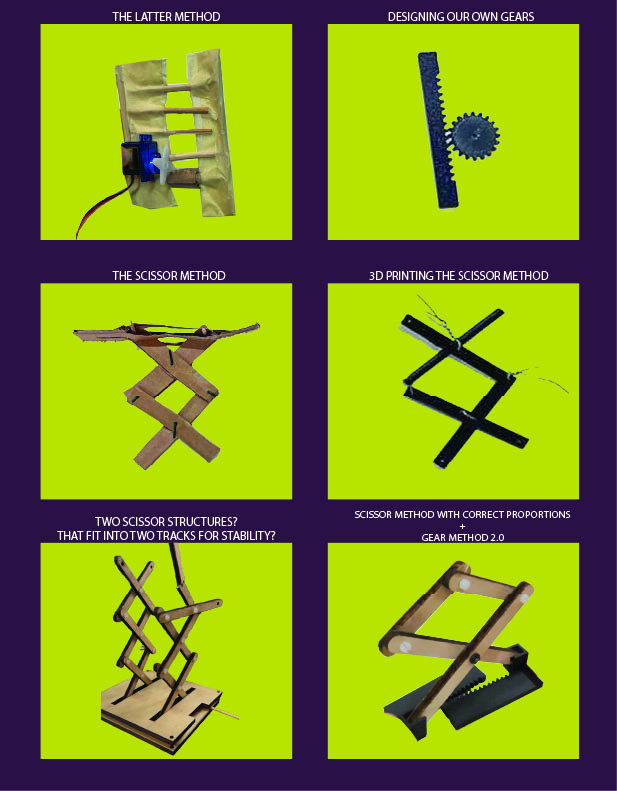

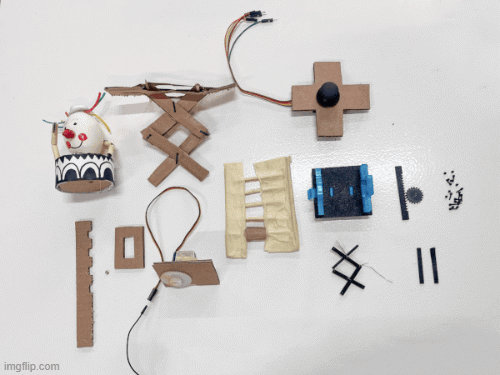

★ our prototypes ★

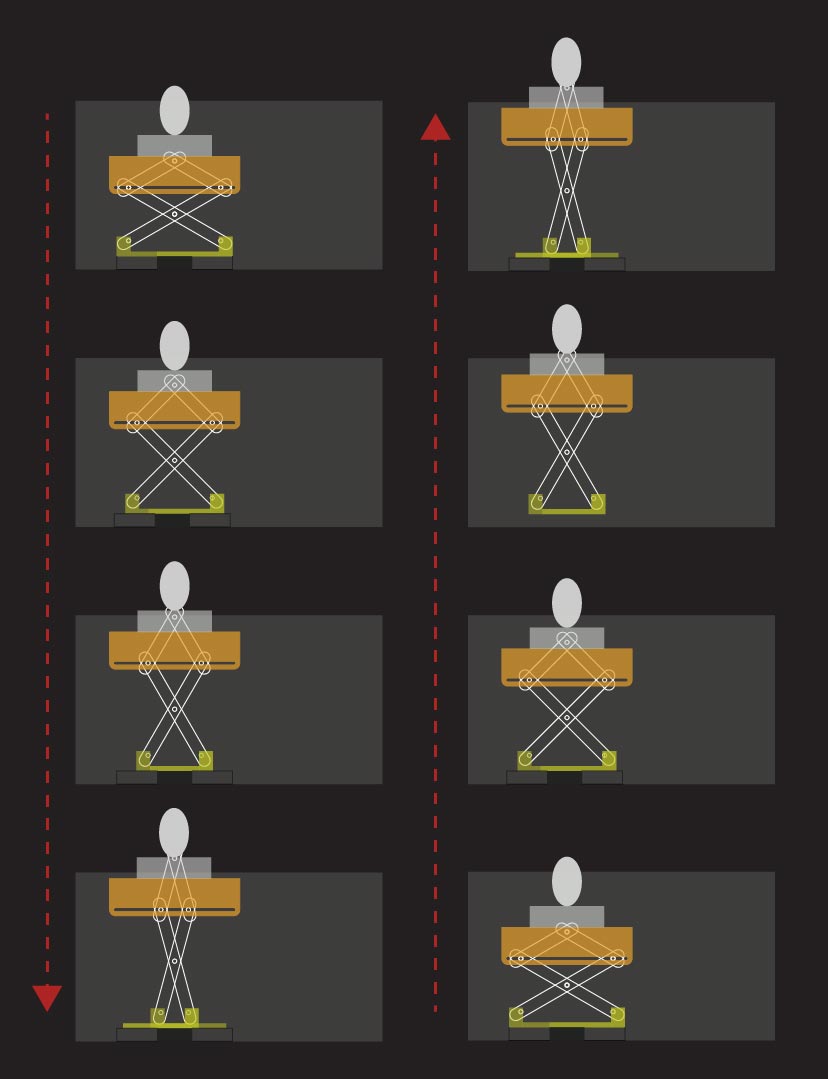

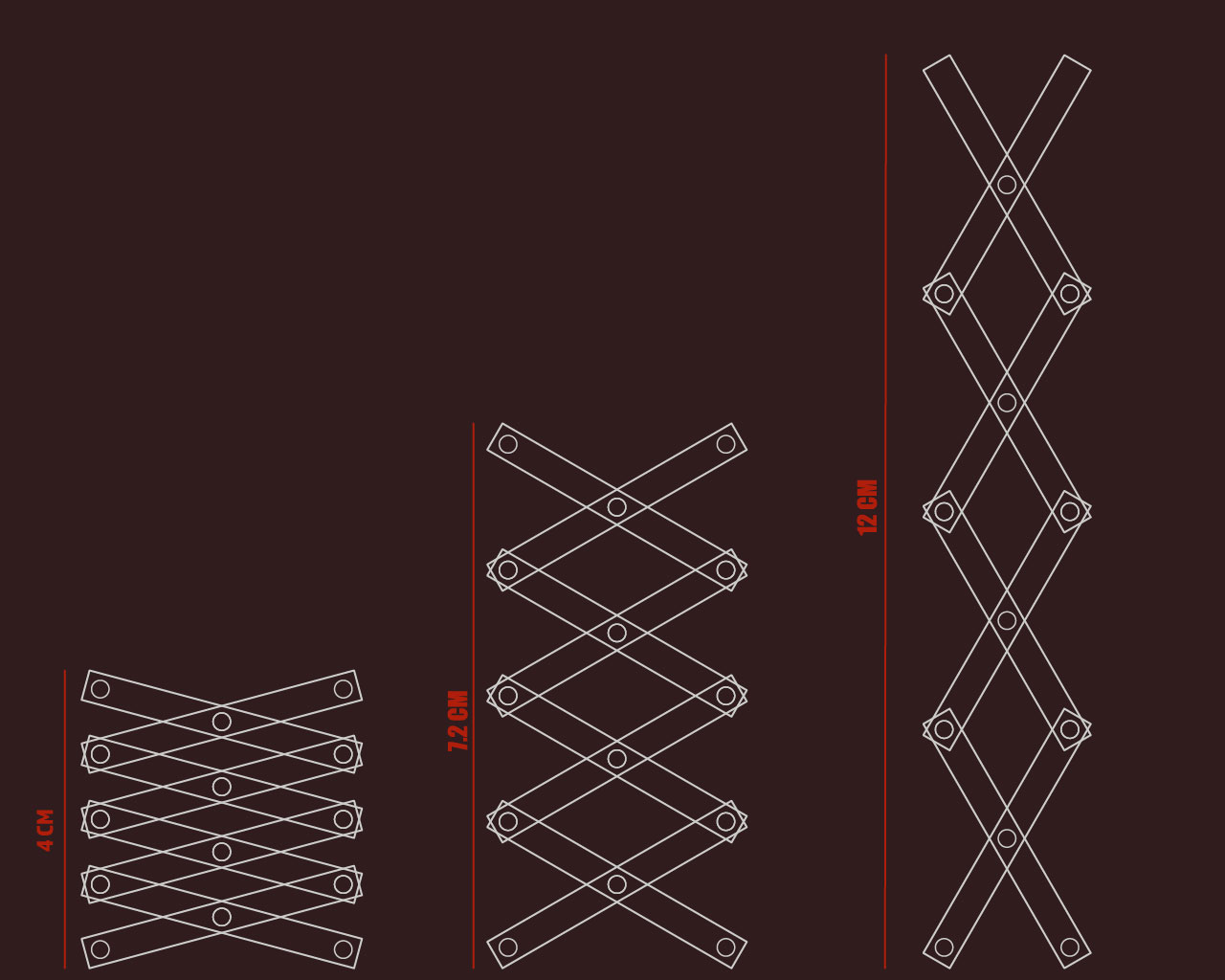

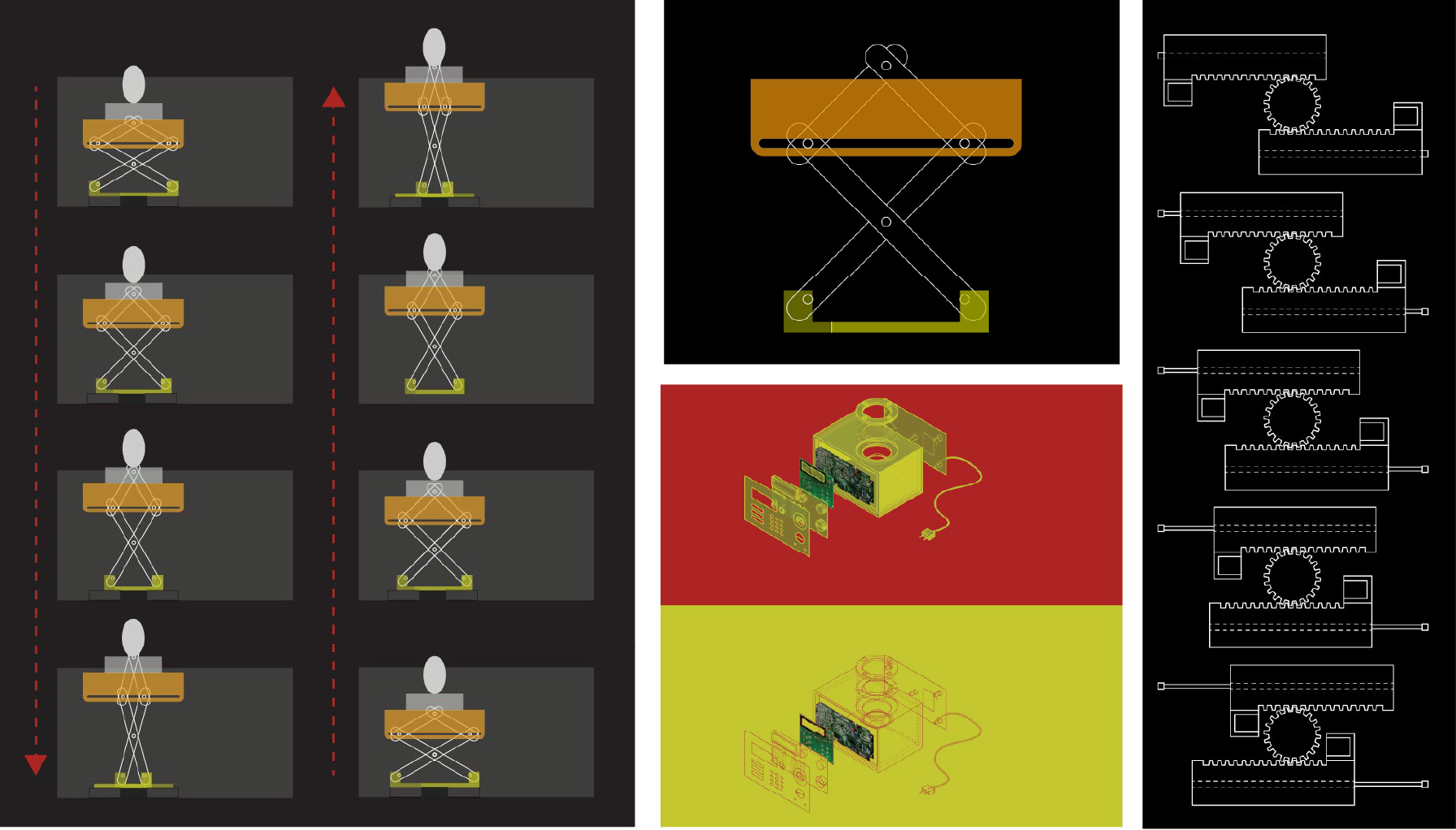

When designing the scissor mechanism, we struggled with making the collapsed structure narrow enough to fit inside the box while still giving it enough room to move. The box was only 9 cm tall, so the mechanism had to fully collapse to hide the clown, yet still extend with enough strength and height to push the clown completely out of the box, just like a traditional jack-in-the-box.
This particular one failed because it only collapsed to 4cm, but we also needed room for the controlled motor and the clown to fit. So our way of reconstructing this was to minimize the structure down to 5 parts.

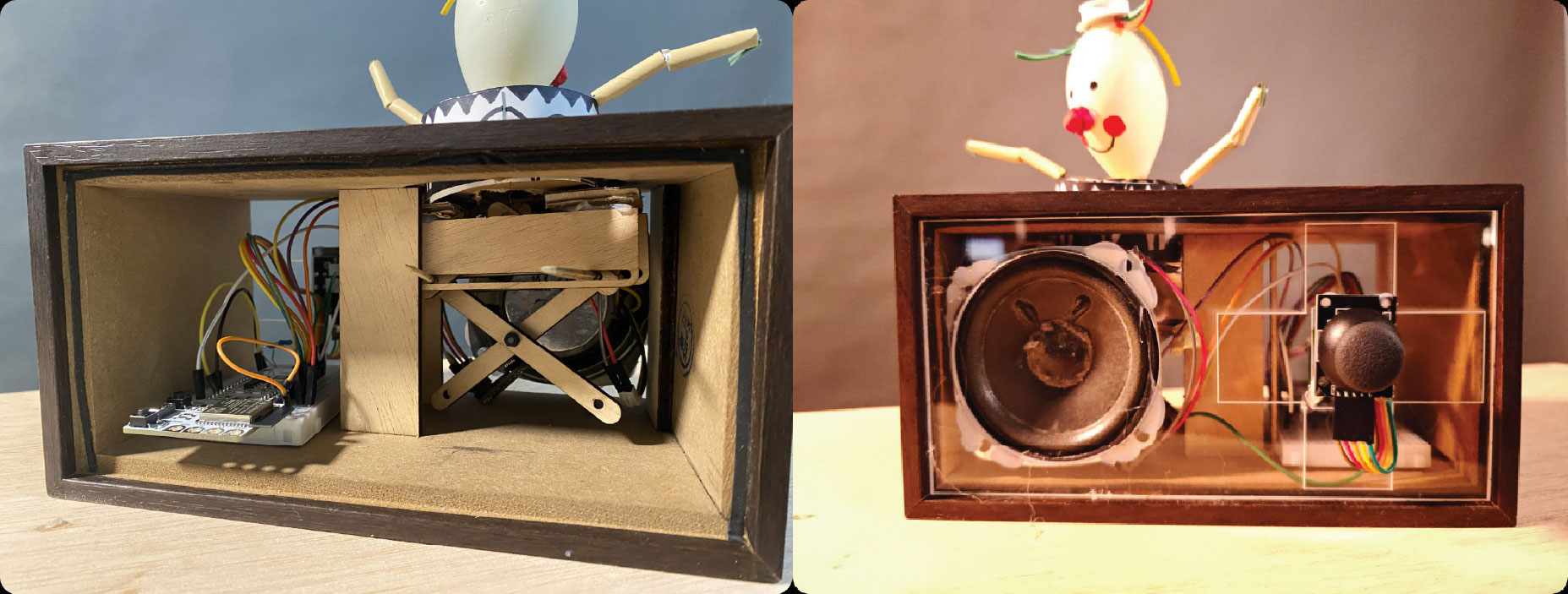

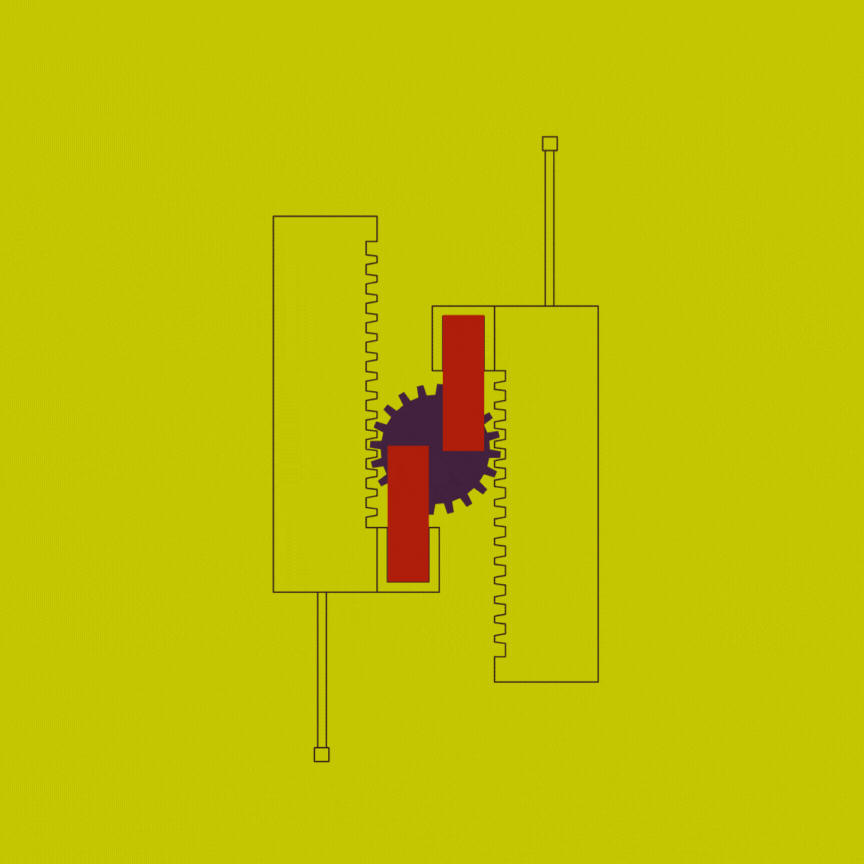

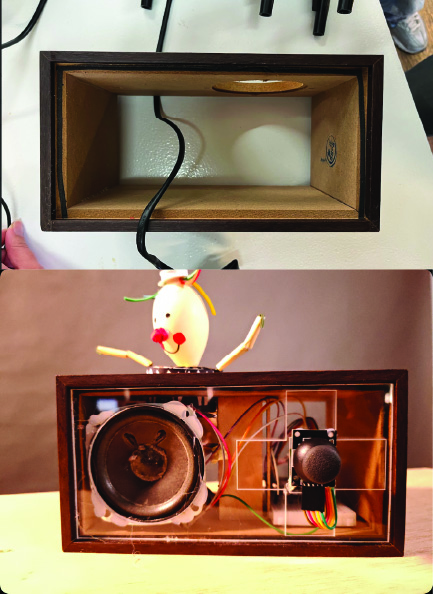

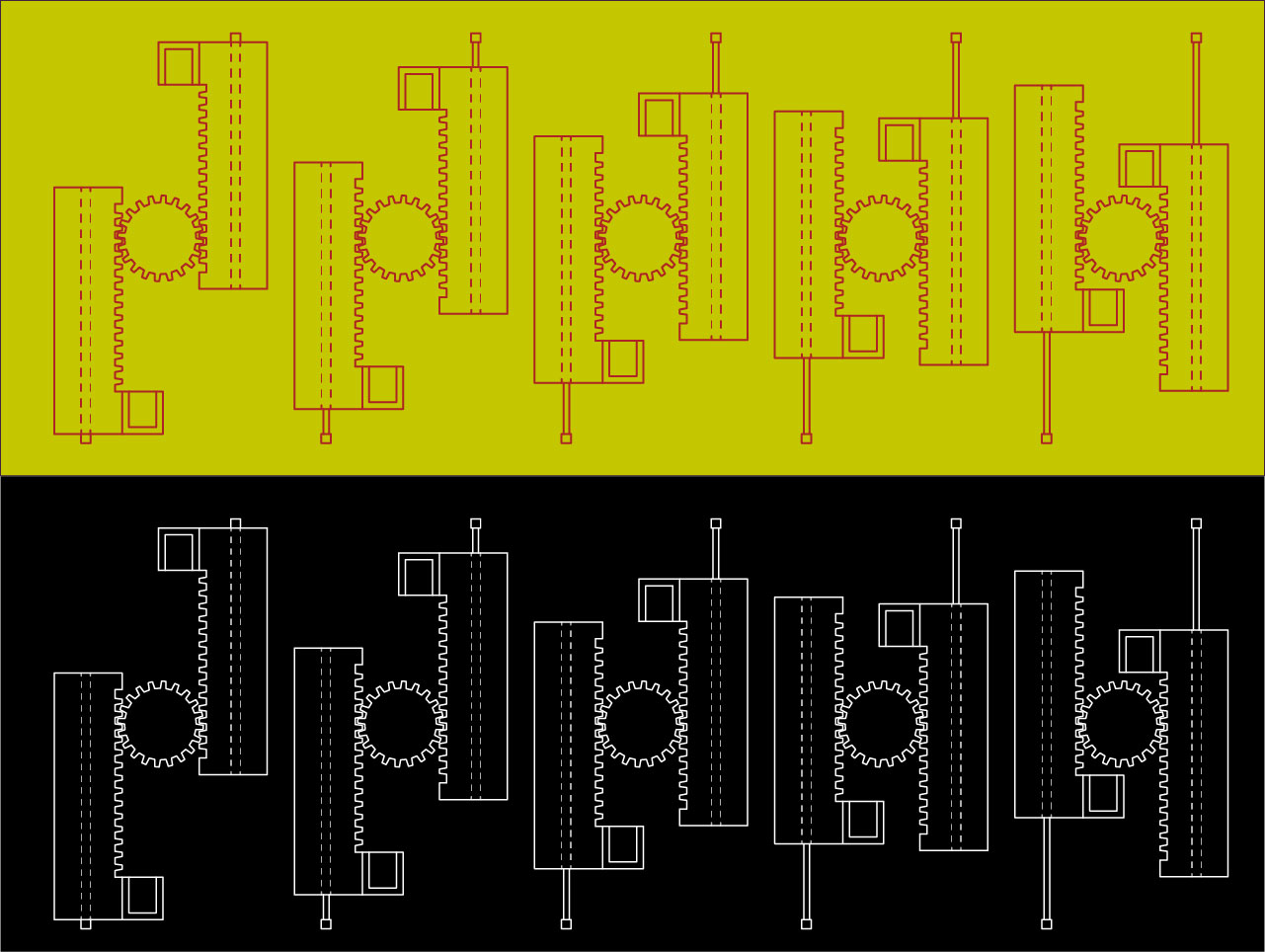

★ Final Gear Mechanism ★
